THCD-401 4-Channel Power Supply



THCD-401_angleThe THCD-401 is a four channel power supply, controller, and display which can be used to operate mass flow meters and controllers as well as vacuum gauges and pressure transducers.

The THCD-401 features the following:

  • High accuracy ±(0.02% of Reading + 1 digit) meter that utilizes 16-bit resolution A/D conversion
  • Bright, graphical LCD display allows the user to easily display measurements with units as well as navigate the easy-to-use front panel menu interface
  • Stable ±15 VDC and +24 VDC levels which can be used to operate mass flowmeters, mass flow controllers, vacuum gauges including capacitance manometers, and linear pressure transducers
  • Mechanical changeover relay (max 50 VDC) is available for process control
  • Digital communication via either a serial USB ‘C’ connection or Ethernet (TCP/IP). When connected to the Ethernet port, the THCD-401 provides a convenient internal webserver for operation and instrument setup. Additionally, Display-X standalone software can be downloaded from our website, free of charge. With Display X, the operator can quickly interface to the THCD-401 and log data.

Refer to the table below to compare the new THCD-401 to the THCD-400

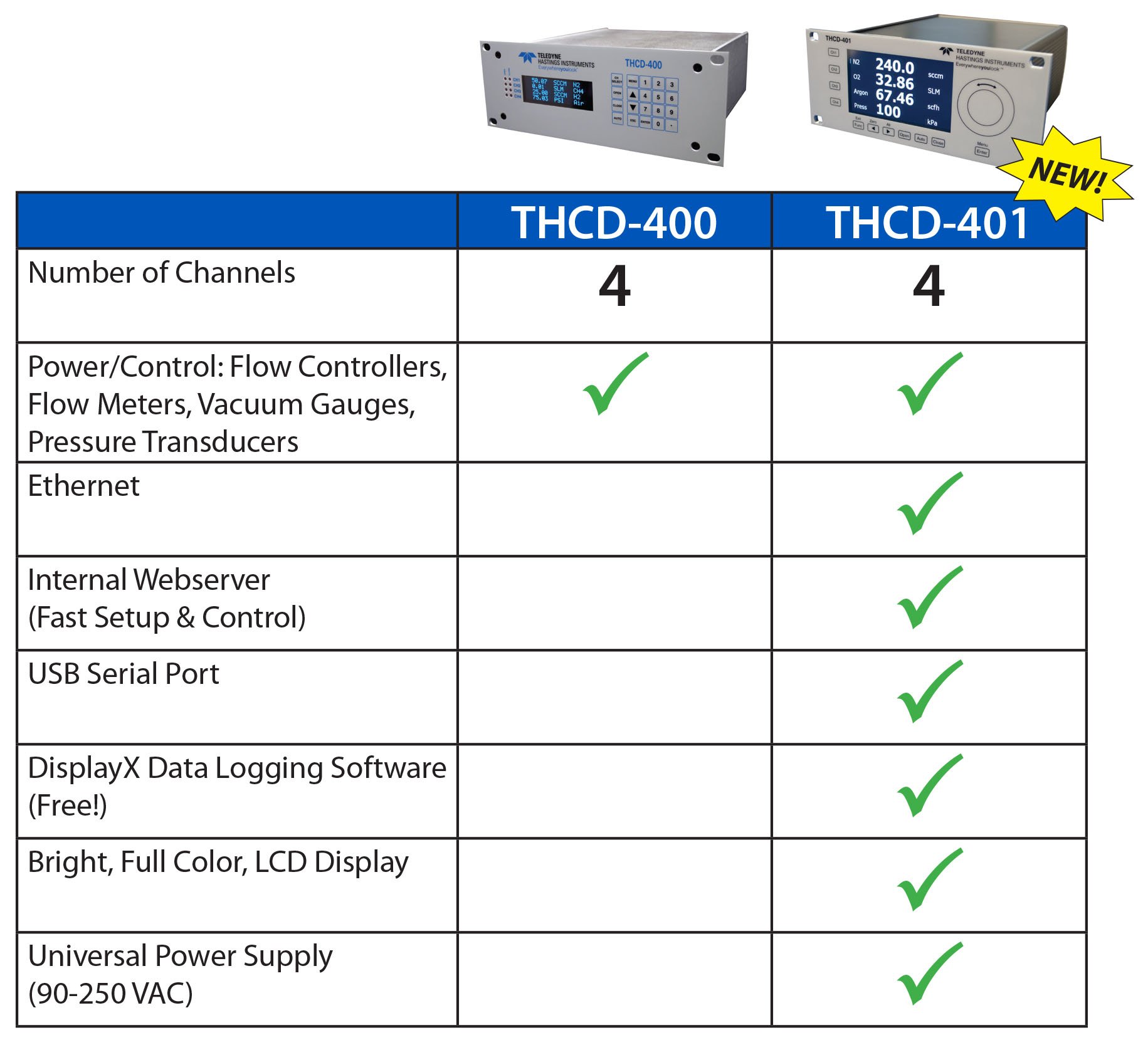

THCD 400_401 Comparison Table

For more information on the THCD-401, please complete the form on the right and we will contact you.
